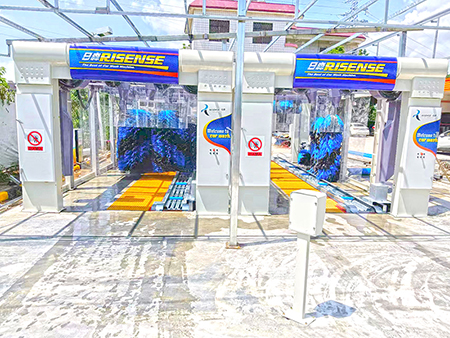

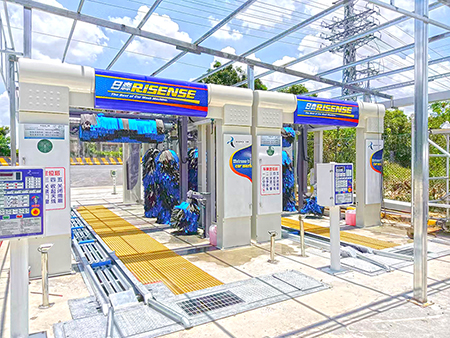

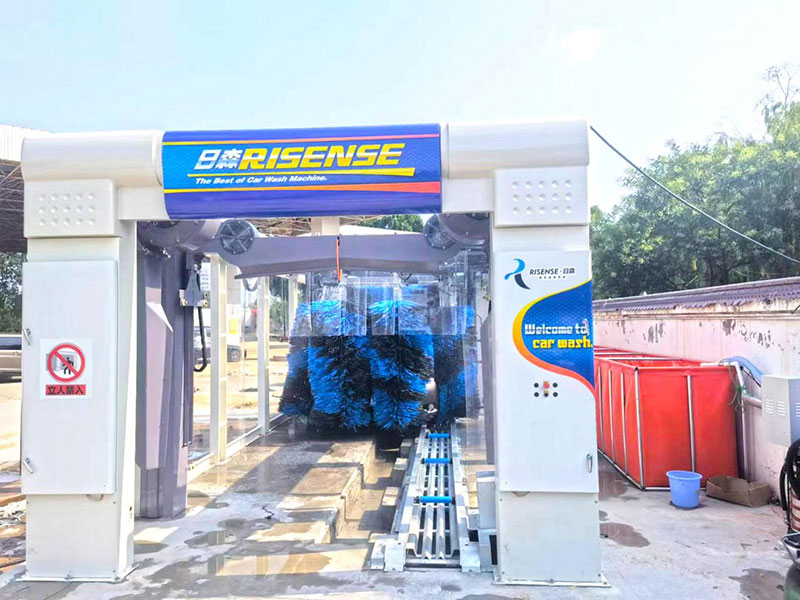

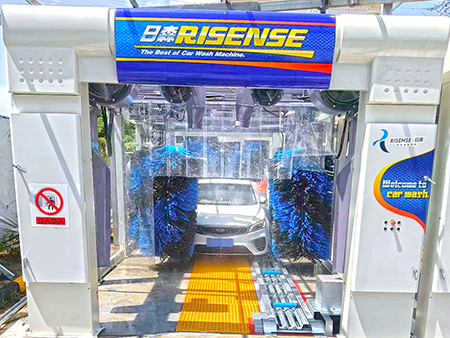

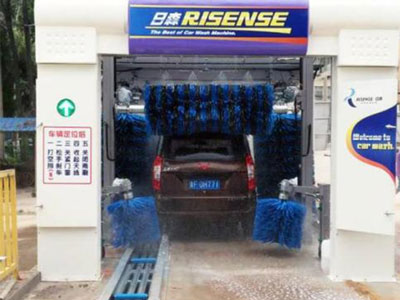

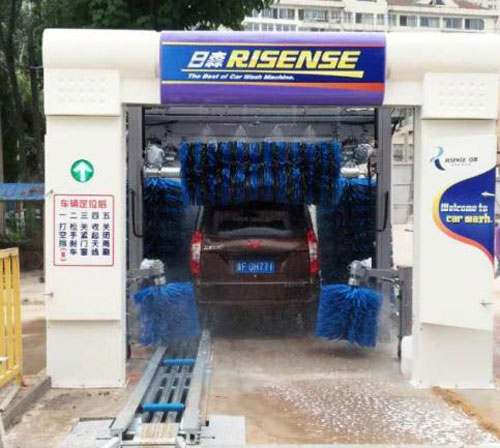

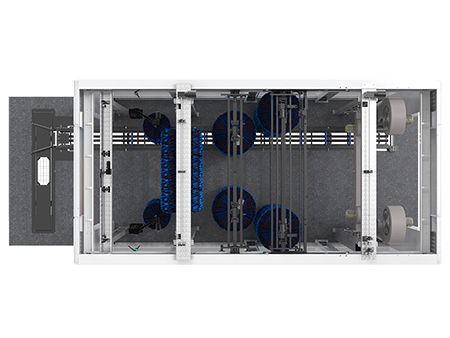

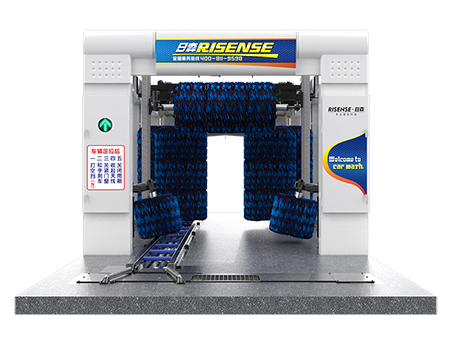

This tunnel car wash system has 7 car brushes: 1 vertical lift overhead brush, 2 large vertical brushes and 4 small vertical brushes. This car wash system features a PLC automatic computer control system, which is known for its security and washing efficiency. A one-click was method is also available. For more information, please see the tunnel car wash system parameters below.
Tunnel car wash machine CC-670 | |

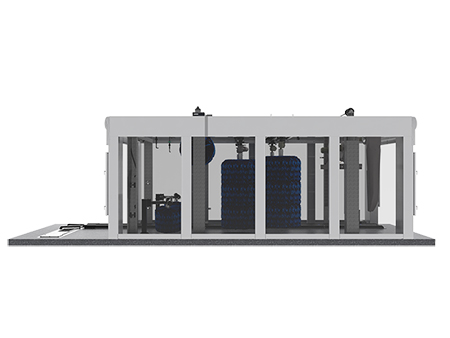

Overall dimension | 8000*3800*3440mm |

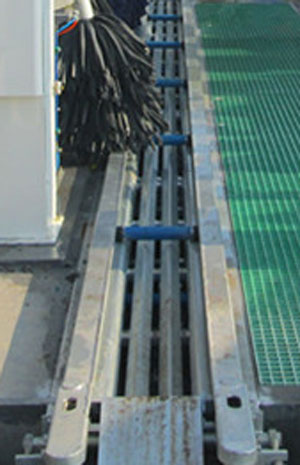

Length of conveyor:9960m (including wheel guide) | |
Installation size | 10240*4000mm |
Voltage | AC 380V50Hz (5-wire system) |
Water supply | Pipe diameter: DN25, water flow≥200L/min |
Air supply | Air pressure: 0.75-0.9MPa, air flow≥0.1m³/min |
Ground flatness | Deviation≤10mm |
Available car to wash | Car\jeep\coach within 10 seats |
Moving range | 5300*2100*2100mm(wheelbase≤3200mm) |
Car wash capacity | 45-55 sets/hour |
Water consumption | 145L/car |
Power consumption | 0.6kW/car |
Shampoo consumption | 20-40ml/car |
Wax consumption | 30ml/car |

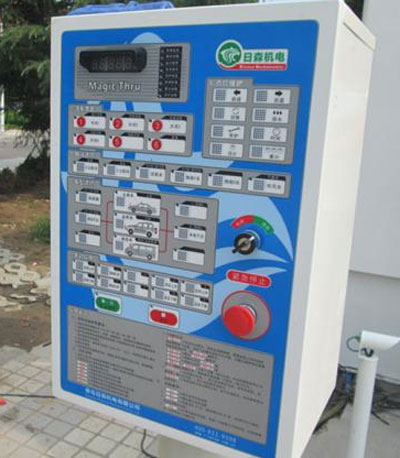

PLC | Mitsubishi from Japan |
Optoelectronic monitoring | Banner from the USA |

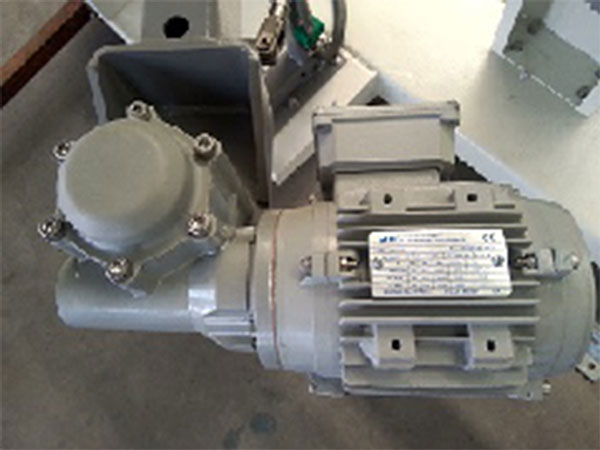

Brush rotating motor | SITI |
Contactor | Schneider from France |
Proximity Switch | Pepperl + Fuchs from Germany |
Small brush cylinder | AirTAC |
Wax suction pump | Bello Zon from Germany |

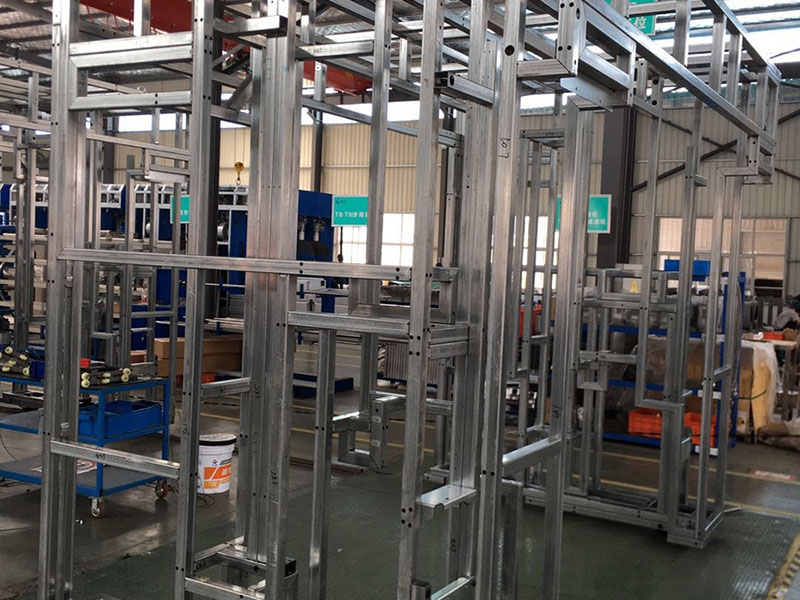

Hot-dipped galvanized frame | 1 group |
Shampoo spray system | 1 group |
Wax spray system | 1 group |

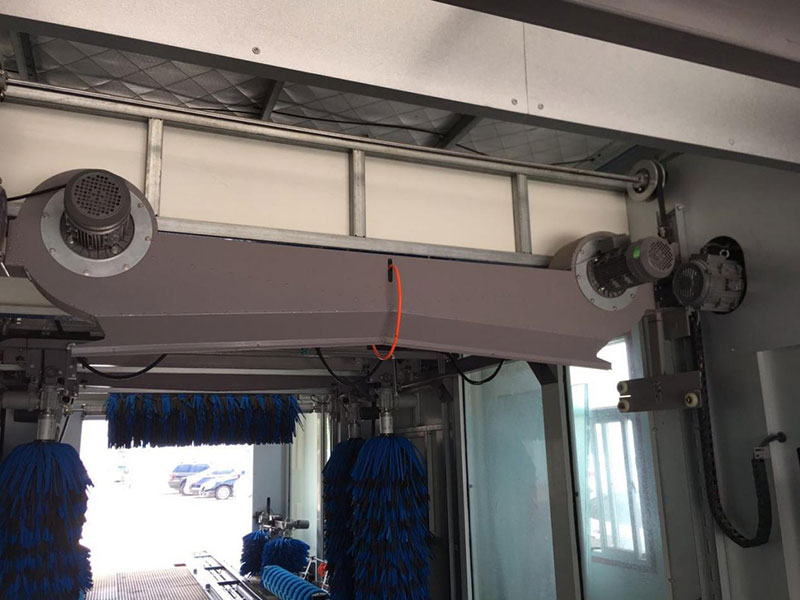

Contour-following drying system | 1 group |

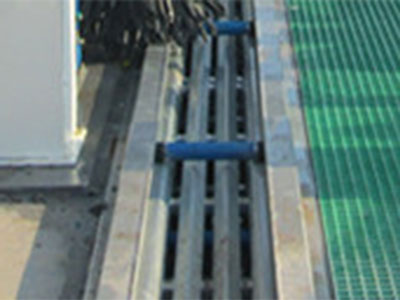

Car entry guide rail apparatus | 1 group |
Chassis spraying system | Can be added |
High pressure water spraying device | Can be added |
Equipment data intellectualization | Management, spot check, operation |
Self-diagnose system | Automatic fault display, self-checking |

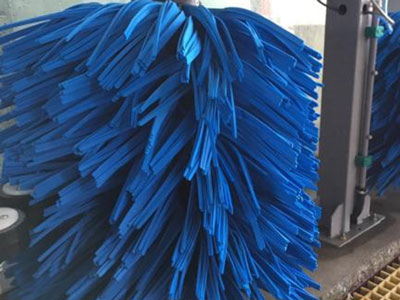

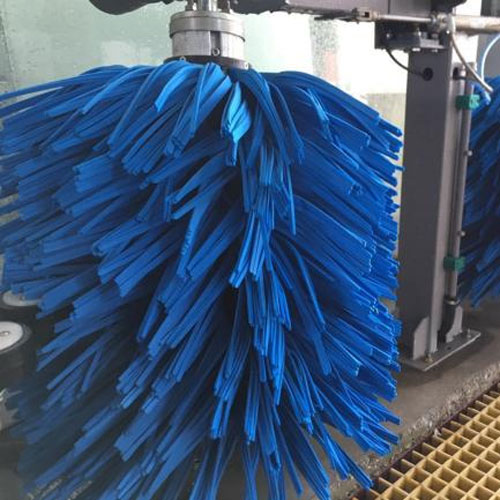

Short vertical brushes | 2 |
Long vertical brushes | 2 |
Top brush | 1 |
Standard Devices | Optional Devices |
Hot dip galvanized frame | Undercarriage wash system |
Shampoo spray system | High-pressure water devices |
Water wax spray system | |
Contour-following drying system | |
Car entry guide rail apparatus | |
Equipment data intellectualization | |
Self-diagnose system |
