Touchless Car Wash Machine - Double Arms, HP-280

Touchless Car Wash Machine - Double Arms, HP-280
Inquiry

Based on our proven technology of single-arm car wash, Risense newly launched the double-arm car wash machine. This new type double-arm car wash system combines touchless car wash technology and single arm precision washing, realizing car washing in a more efficient manner. Besides, two sides washing combined with the roof high pressure water washing, this new car washer can clean the car in all directions.

Features
  • "EMERGENCY STOP" button
    The "EMERGENCY STOP" button is set to allow car wash machine to stop running at any time, greatly preventing injuries.
  • Double swing arm high-pressure water system
    Double swing arm can follow the car wash machine to walk back and forth for high-pressure flushing, and rotate at the front and rear of the car for washing.
  • Contour-following drying system
    Built in contour-following drying system, 4 blowers and 3 air outlets
  • Telescopic tire brush
    Telescopic tire brush can accurately position the tire hub, and the follow-up nozzle ensures washing in place.
Parameter
Touchless car wash machine HP-280
Overall dimension 2500*3620*3100mm
Installation size 1150*4600*3600mm
Wash bay size 2500*1600*2000mm
Voltage 3-phase 380V 50Hz
Power Total power: 42kW, max. working power: 33kW
Water pump pressure 8MPa
Air source pressure 0.6-0.7MPa
Available car to wash Car/coach/business car within 7 seats
Car washing size 5300*1950*2050mm
Car wash capacity fine wash: 6 min/car
Water consumption 650L/car
Power consumption 1.95kWh/car
Shampoo consumption 35-60ml/car
Wipe-free detergent shampoo consumption 30-50ml/car
Wax consumption 30-40ml/car
Frame Hot-dipped galvanized steel frame
Frequency converter Delta
Touch screen KINCO
Electric control system Delta
High pressure plunger pump LTD
Ultrasonic sensor P+F
Photoelectric sensor Banner from the USA
Proximity sensor P+F
Contactor Schneider
Metering pump Newdose
Advantages

1. Contour-following drying system, high pressure water sprayer and blower dryer

  • Touchless Car Wash Machine - Double Arms, HP-280

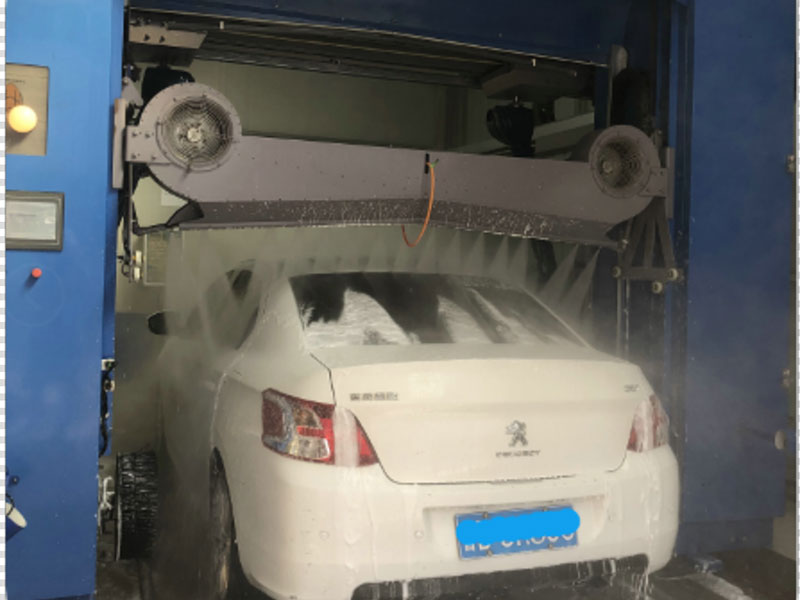

    1）Side and top contour-following drying system to fully cover the car surface with cleaning foam

  • Touchless Car Wash Machine - Double Arms, HP-280

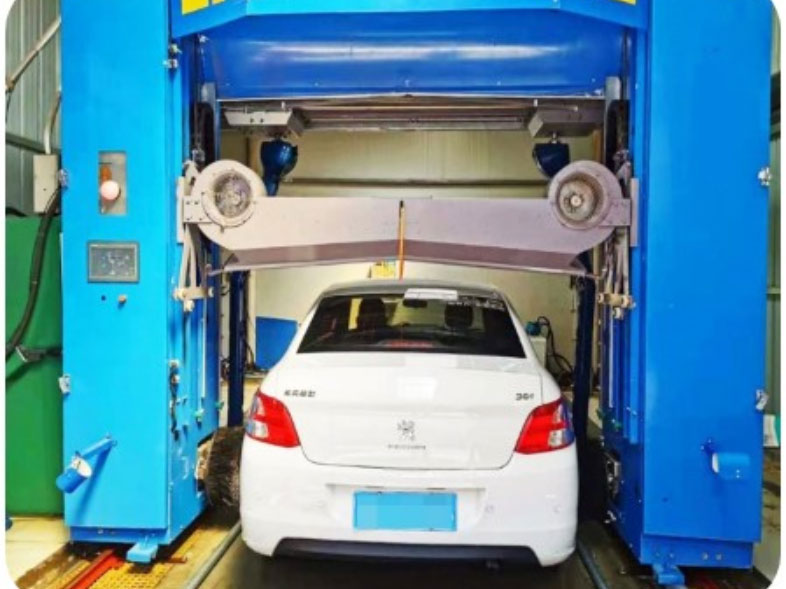

    2）Top high pressure water contour-following sprayer, able for automatically moving up and down according to the shape of the car roof while keeping appropriate tilt, to enhance washing performance.

  • Touchless Car Wash Machine - Double Arms, HP-280

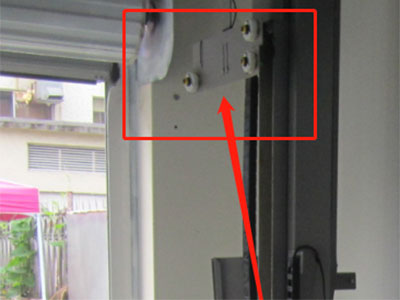

    3）Top contour-following drying system with 3 opto-electronic sensors placed in a triangular shape. The dryer moves up once the sensors get triggered to prevent car damage.

Touchless Car Wash Machine - Double Arms, HP-280

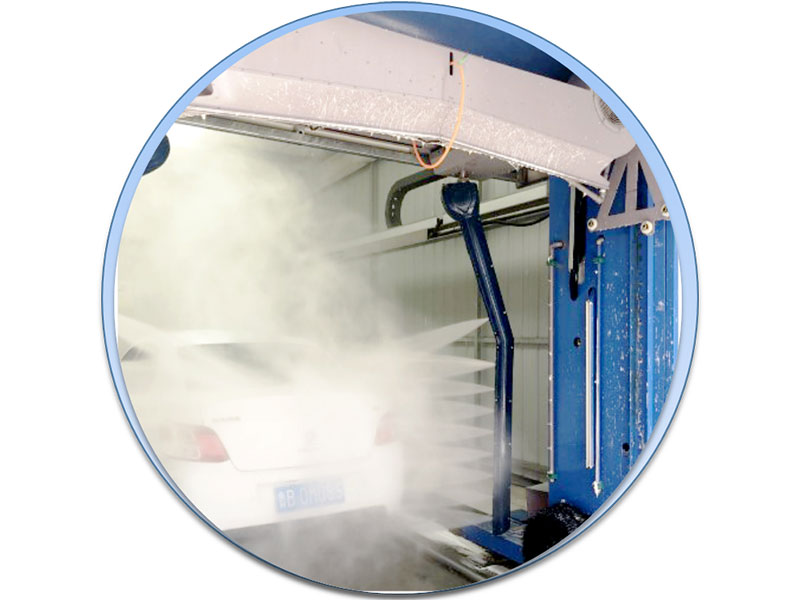

2. Double high pressure water spraying arms

Double high pressure water spraying arms, able for cleaning the entire vehicle by self-rotating and vehicle-following, good cleaning performance.

Car washing process:

Chassis washing --- contour-following foam spraying --- top contour-following high pressure water spraying --- side arm high pressure water spraying --- tire washing --- water wax spraying --- contour-following drying
