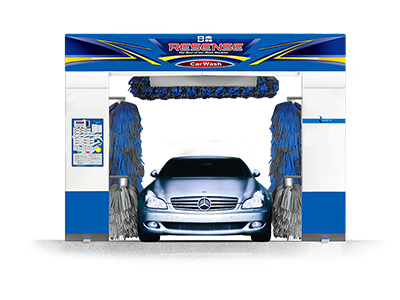

Rollover Car Wash Machine CF-330 (Classical Type)

This product has been discontinued and removed from our shelves.

Rollover Car Wash Machine CF-330 (Classical Type)

The classical type car wash system CF-330 has added double swing drying blowers compared to the CF-320. The CF-330 car wash equipment features high-pressure water system and can clean deep stains to meet different customer requirements. This soft touch car wash machine utilizes soft brushes, which can quickly rotate and move in various directions to remove contaminations on the surface during operation. Below are the technical parameters about the classical type car wash system.

Parameters
Model CF-330
Dimension L*W*H: 2.4m×3.6m×2.9m
Rail length: 9m rail distance: 3.2m
Assembling Range L*W*H :10.5m×3.7m×3.1m
Moving Range L*W: 10000mm×3700mm
Voltage Voltage AC380V 50Hz Capacitance 20KVA
Water Supply DN25mm water flow rate≥80L/min
Air Pressure 0.75～0.9Mpa air flow rate≥0.1m3/min
Ground Flatness Deviation≤10mm
Applicable Vehicles Sedan/jeep/minibus within 10 seats
Applicable Car Dimension L*W*H: 5.4m×2.1m×2.1m
Washing Time 1 rollover 2ˊ05〞/2 rollover 3ˊ55〞
Advantages
  • Full-automatic PLC electronic control system improves the security.
  • The corrosion resistance of the galvanized frame of the vehicle washing equipment is the 10-20 times that of hot galvanized plate, increasing the service life.
  • Double swing drying blowers bring better drying performance.
  • Foam and water wax proportioning system is easy to use.
  • Two-Click washing steps is easy to operate.
  • High-pressure water system can completely clean the deep stains.
Configurations
Standard Devices Optional Devices
Shampoo spray system Undercarriage wash system
Water wax spray system
Contour-following drying system
Equipment data intellectualization
Self-diagnose system
Brush system
