Rollover Car Wash Machine CF-300 (Japanese Type)

This product has been discontinued and removed from our shelves.

Rollover Car Wash Machine CF-300 (Japanese Type)

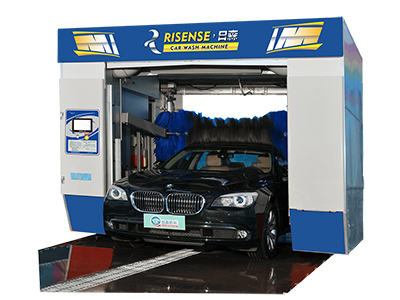

The Japanese type car wash system (CF-300) is the first car wash equipmentRisense introduced from Japan, and it features two powerful air mute dryers. The contour-following dryer can follow the contours of vehicles to blow water off the surface. The contour tracking system can achieve a better drying effect. The below table shows further details about this Japanese type car wash system.

Parameters
Model CF-300
Dimension L*W*H: 2.61m×3.6m×2.815m
Rail length:8.2m Rail distance:3.2m Diagonal brace bracket: 2.86m
Assembling Range L*W: 10070mm×3700mm
Moving Range L*W:10470mm×3700mm
Voltage Voltage AC380V50Hz Capacitance 15KVA (Total Power: 8.4KW)
Water Supply DN25mm Water flow rate≥80L/min
Air Pressure 0.75～0.9Mpa Air flow rate≥0.1m³/min
Ground Flatness Deviation≤10mm
Applicable Vehicles Sedan/jeep/minibus within 10 seats
Applicable Car Dimension L*W*H: 5.2m×2.15m×2.27m
Washing Time 1 rollover 2'45''/ 2 rollover 3'25''
Advantages
  • Fully-automatic PLC electronic control system improves the security.
  • The corrosion resistance of the galvanized door-shaped frame of the vehicle washing equipment is the 10-20 times that of hot galvanized plate, increasing the service life.
  • Two powerful air mute dryers and contour-following drying system improves the drying effect.
  • Foam and water wax proportioning system is easy to operate.
  • Two-Click washing method simplifies operations.
  • Built-in self-diagnose system can recognize and remove obstacles during car washing.
Configurations
Standard Devices Optional Devices
Shampoo spray system Undercarriage wash system
Water wax spray system Voice prompt system
Contour-following drying system High-pressure water system
Brush system
