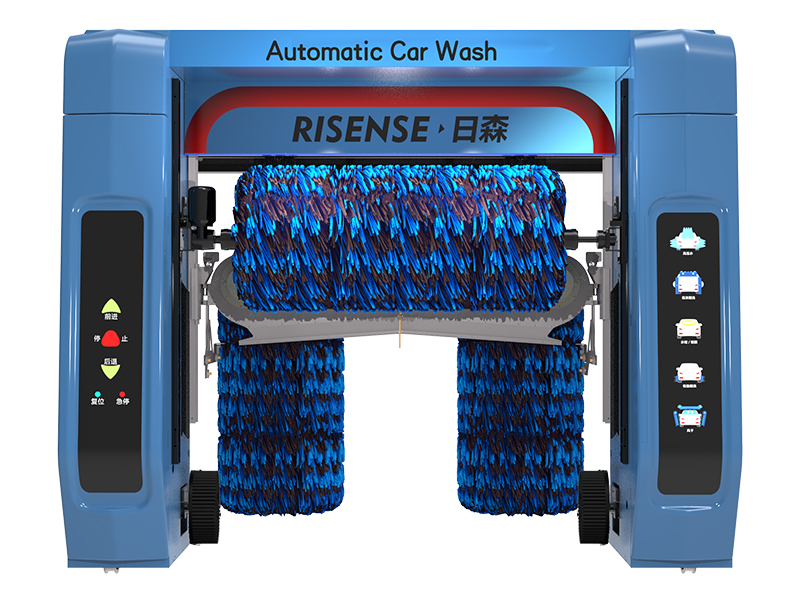

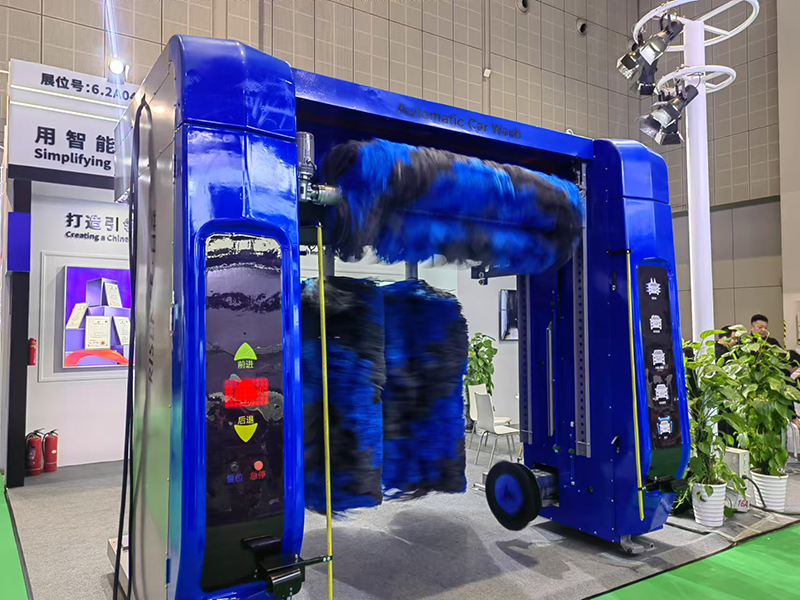

Rollover Car Wash Machine CF-370 (EU type)

Rollover Car Wash Machine CF-370 (EU type)

The high-speed car wash system (CF-370) is one of our high-end types of the rollover car wash systems. After over 3 years of research and development, Risense has launched this car wash system with tire brushes to satisfy the higher requirements of some customers. The high-speed car wash machine can rinse different parts of the vehicle at one time, and hence save time and resources.

  • Parameters
  • Advantages
  • Details
  • Configurations
Parameters
Rollover car wash machine CF-370
Overall dimension 1940*3900*3080mm
Rail: 9000*3200mm/height of drag chain 3150mm
Installation size 11000*4300*3300mm (leave some space at both sides for access)
Voltage AC 380V 50Hz
Water supply Pipe diameter: DN25, water flow≥80L/min
Air-source pressure 0.75-0.9MPa
Ground flatness Deviation≤10mm
Available car to wash Car/jeep/coach within 10 seats
Moving range 5400*2100 (mirror folding) *2100mm
Car wash capacity One rollover: 2'45'', two rollovers 5'20'', three rollovers: 7'20''
Water consumption One rollover: 85L/car, two rollovers:110L/car, three rollovers:130L/car
Power consumption 0.46-0.65kWh/car
Shampoo consumption 15ml/set
Wax consumption 20ml/set
Short vertical brushes 2
Long vertical brushes 2
Top brush 1
Frame ZFC alloy steel hot-dipped galvanized steel frame
Brush material The 4th-generation foam brush
Control system MCU (Risense)
Optoelectronic monitoring Banner from the USA
Proximity Switch Pepperl + Fuchs from Germany
Contactor Siemens from Germany
Solenoid valve Pinguan
Thermal relay Schneider from France
MCCB Schneider from France
Motor protector Schneider from France
Intermediate relay Honeywell from the USA
Elevating motor with brake SITI
Brush rotating motor SITI
Advantages
  • Fully-automatic PLC electronic control system improves the security.
  • The galvanized door-shaped frame of the vehicle washing equipment features higher corrosion resistance and increases the service life.
  • Powerful air dryers can follow the contours of vehicles to improve the drying effect.
  • Foam and water wax proportioning system is easy to operate.
  • Two-Click washing method simplifies operations.
  • Built-in self-diagnose system can recognize and remove obstacles during car washing.
  • 7 brushes (1 vertical lift overhead brush+2 small tire brushes+2 small vertical brushes+2 large vertical brushes)
Details

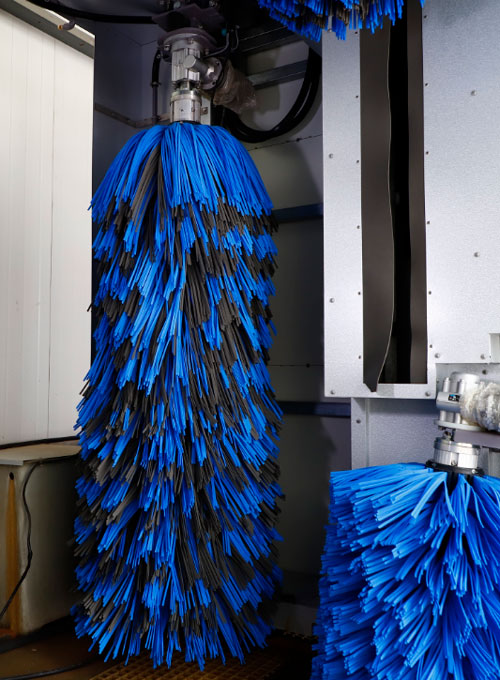

  • Foam brush

    Foam brush

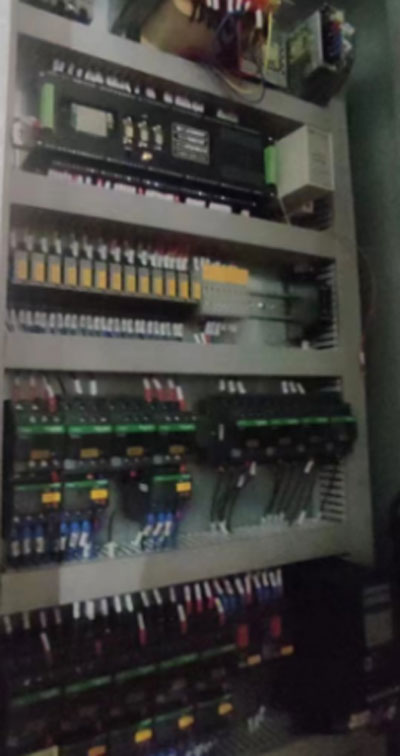

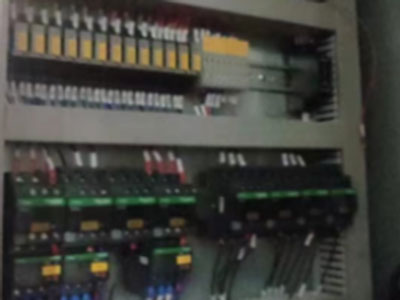

  • MCU control system

    MCU control system

  • Touch screen

    Touch screen

  • Air dryer – the contour-following drying system dries cars of any shapes

    Air dryer – the contour-following drying system dries cars of any shapes

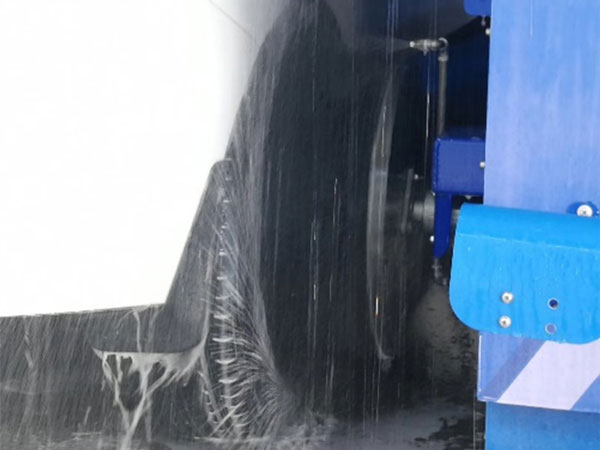

  • Wheel brushes

    Wheel brushes

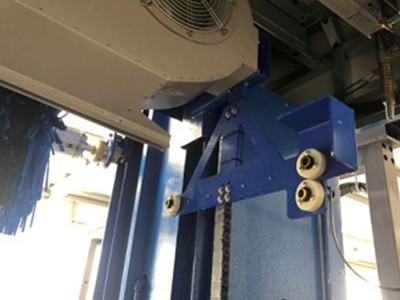

  • Side air outlets

    Side air outlets

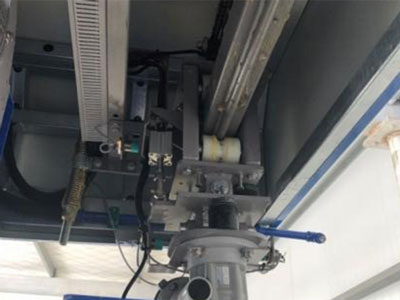

  • Details

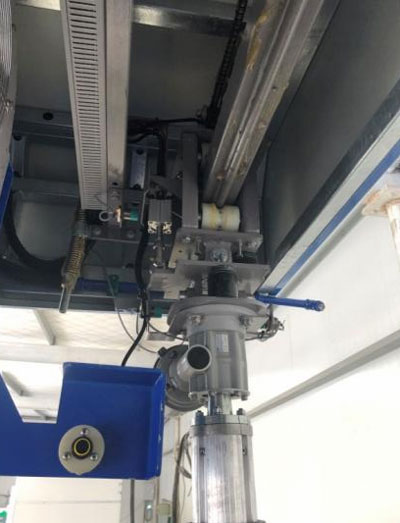

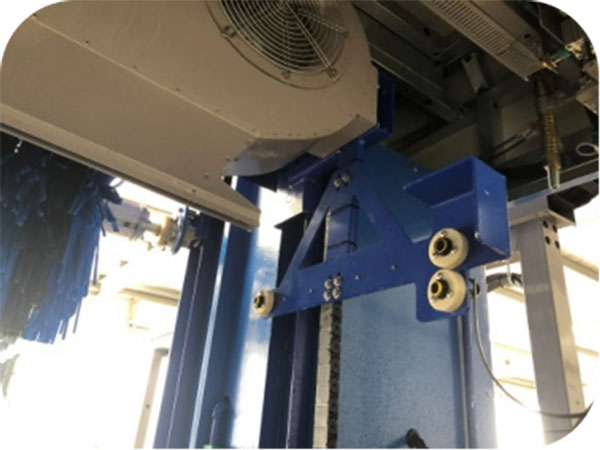

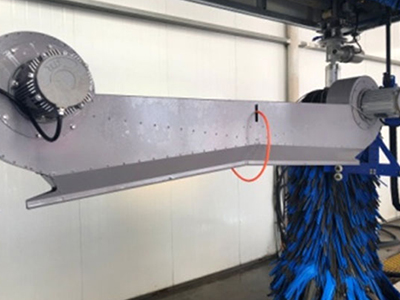

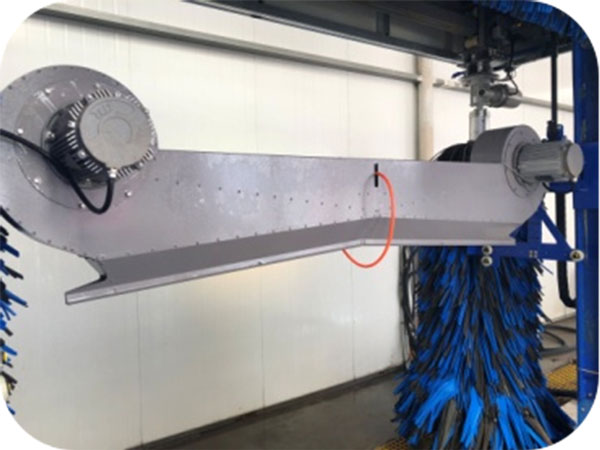

    Risense’s rollover car wash machine CF-370 adopts the advanced bearing technology that shortens the distance between the top brush and the top air outlet. The length of the car wash machine is as short as 1.5 meters, which increases the spatial efficiency. The CF-370 is thus suitable for various sites.

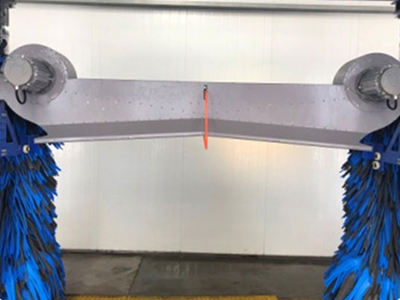

  • Air dyer system

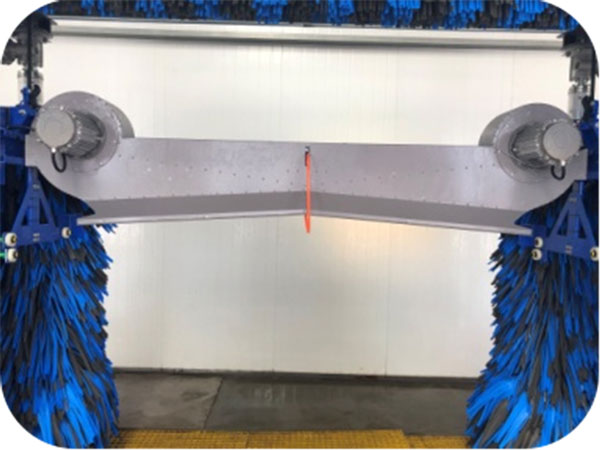

    Air dyer system

    The air dryer system comprised of 4 air compressors and 4 outlets is effective to dry cars. Turned V-shaped side blow can increase the use ratio of air power as it reduces air offset.

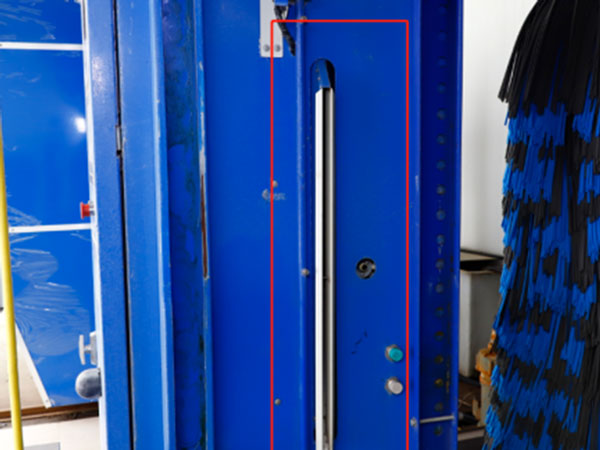

  • Photoelectric sensor

    Photoelectric sensor

    The air dryer system is equipped with 3 pairs of photoelectric sensors that can identify the car body shape and keep air outlets 10cm away from the car. The design well protects customers’ cars.

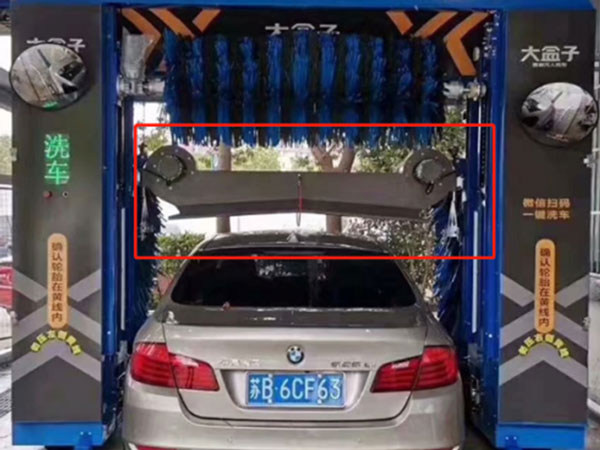

  • Height limit device

    Height limit device

    The height limit device will stop the machine if cars touch it, which increases the safety of car washing process.

  • Details

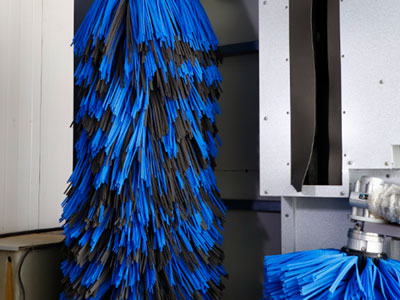

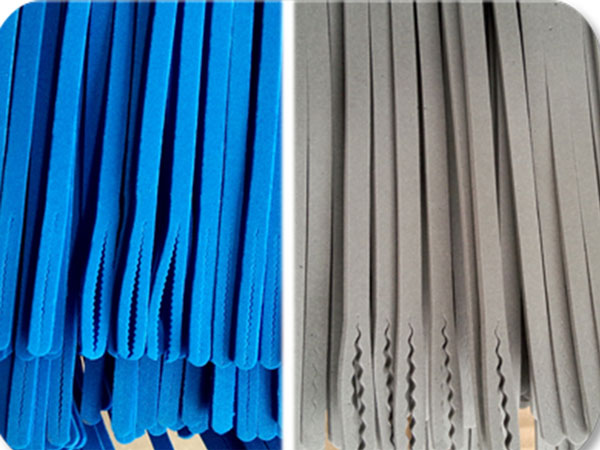

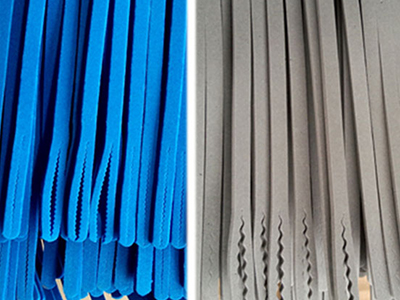

    Side brushes and wheel brushes of Risense’s rollover car wash machine CF-370 are respectively made of cloth brushes and 4th generation of swallow-tailed sawtooth foam brushes. The combination of cloth and foam brushes performs well in terms of cleanness, quietness, durability, softness and safety, especially the foam brushes feature great capacity to retain water and reduce noise, which greatly improves user experience.

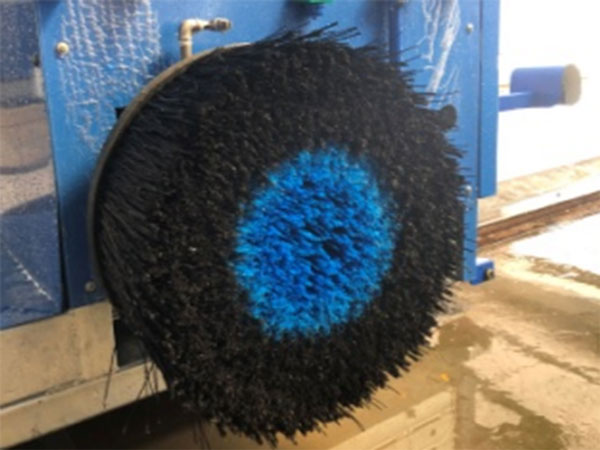

  • Wheel brushes Wheel brushes

    Wheel brushes

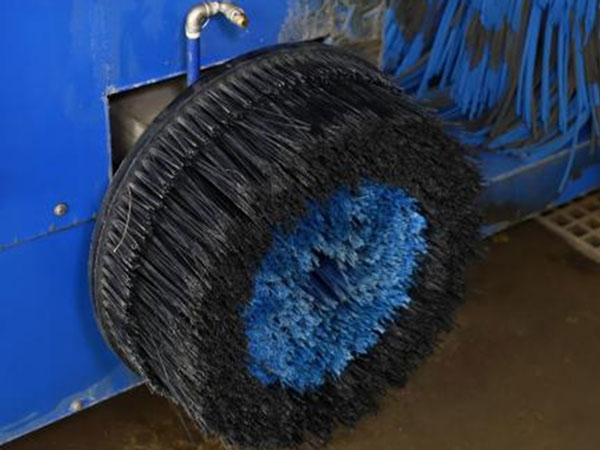

    Pneumatic wheel brushes are made of nylons and they can wash deep into recesses and wheel rims.

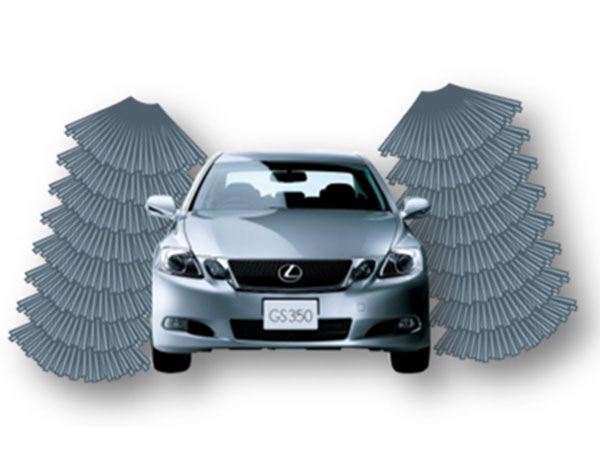

  • Brushes tilting technology

    Brushes tilting technology

    Brushes smartly adapt to the car body shape in the tilted position to effectively clean car sides and the rears.

  • Details Details

    Risense’s rollover car wash machine CF-370 collects car exterior information with the use of raster scanning before a car enters the machine. Motion of top brushes will be processed and calculated by PLC and thus is stable and immune to external factors. The smart safety system comprised of photoelectric censors and touch censors guarantee the safety and stability of the whole car washing process.

Configurations
Standard Devices Optional Devices
Shampoo spray system High-pressure water devices
Water wax spray system water-repellent protective coating with high gloss finish
Contour-following drying system Undercarriage wash system
Telescopic tire brushes High-pressure prewashing water guns
Equipment data intellectualization
Self-diagnose system
