Truck & Bus Washing Systems | Rollover Wash System

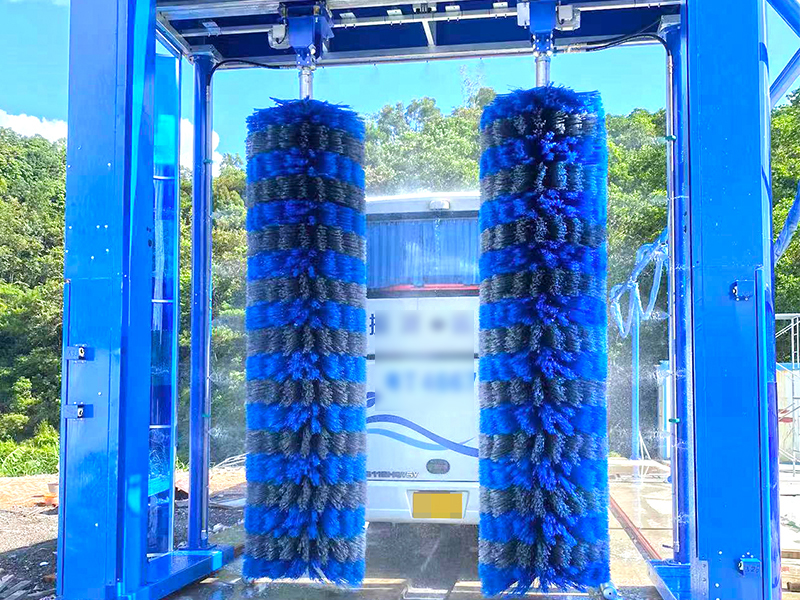

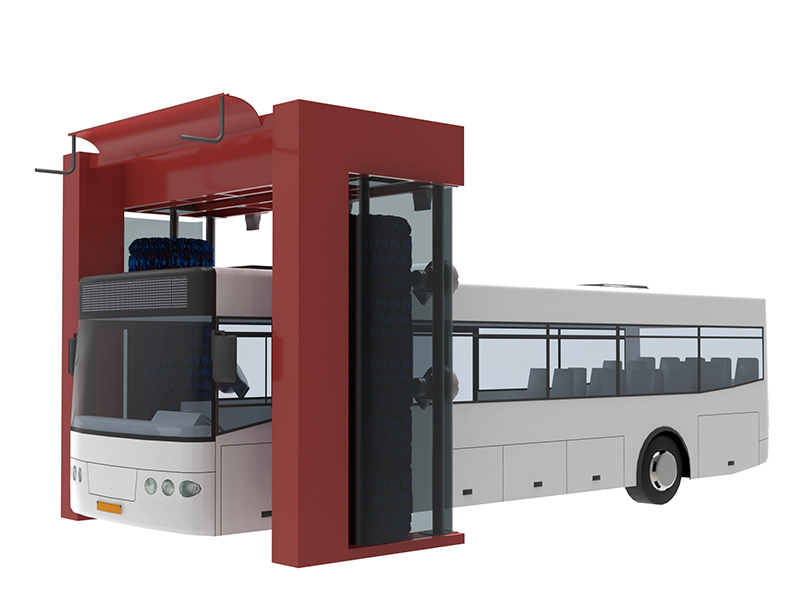

Bus/Truck Wash Equipment (2-Brush) (Rollover Type)

Bus wash equipment with 2 rollover brushes are used to clean two sides, the head, and back side of busses. This bus wash system is ideal for washing vehicles where the length does not exceed 18,000mm, the height does not exceed 4,200mm, and the width is 2,700mm. This system is capable of washing up to 15 buses per hour. During the washing process, the bus remains motionless, and the machine will move the brushes over and around the vehicle. Shown below are some basic parameters.

Request a Quote

Technical Parameter

Model	CB-720
Overall dimension	288051205500mm
Installation size	32000mm6800mm(LW), leave some space on both sides for access
Moving area	(18-24)m*6.8m
Voltage	380V, 50Hz (5-wire system)
Water supply	Pipe diameter: DN25, water flow ≥120L/min
Ground flatness	Deviation≤10mm
Normal washing method	One rollover
Available car to wash	Container, container truck, bus truck
Car washing dimension	240002600≤4200mm
Bus washing capacity	12-15 cars/hour
Water consumption	180-220L/car
Power consumption	0.54kW/car
Shampoo consumption	25-30ml
Long vertical brushes	2

Configuration

Frame	Hot-dipped galvanized steel frame
Brush and pipe material	Alloy steel pipe, integral nylon brush/foam brush
Side brush motor	SITI from Italy
Driving motor	SITI from Italy
Water pump	Youli
Intelligent device data	Management, checking, operation
Self-diagnosis	Available

Advantages

The fully automatic PLC electronic control system improves the security.
A one-click washing method simplifies operation.
The galvanized bus wash system frame is corrosion resistant.
There is no need for extra wiping after the washing process.

Configurations (Standard Devices)

Frame
Brush system
Lateral brush motor
Drive motor

Water pump
Equipment data intellectualization
Self-diagnose system

CB-720

Bus/Truck Wash Equipment (2-Brush) (Rollover Type)
