Worksite Heavy Duty Wheel Wash Systems (80 Tons) (130 Tons), Wash Rack

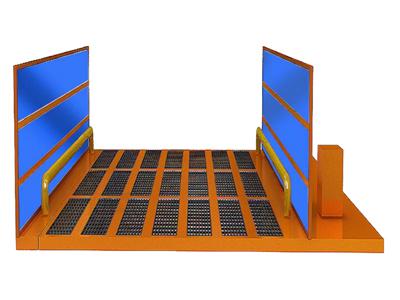

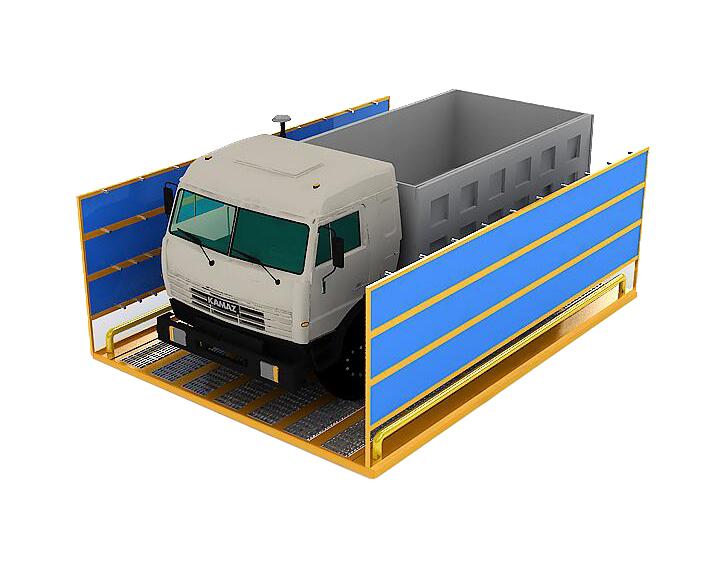

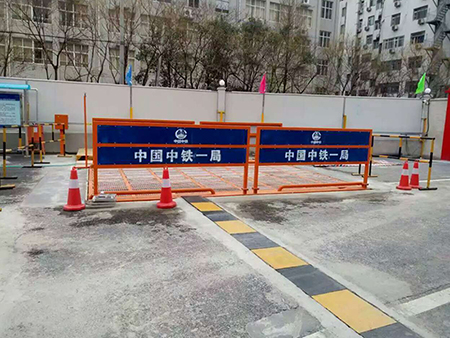

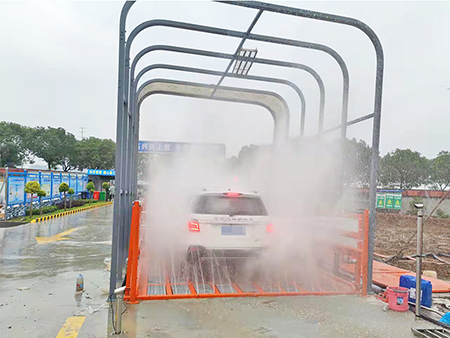

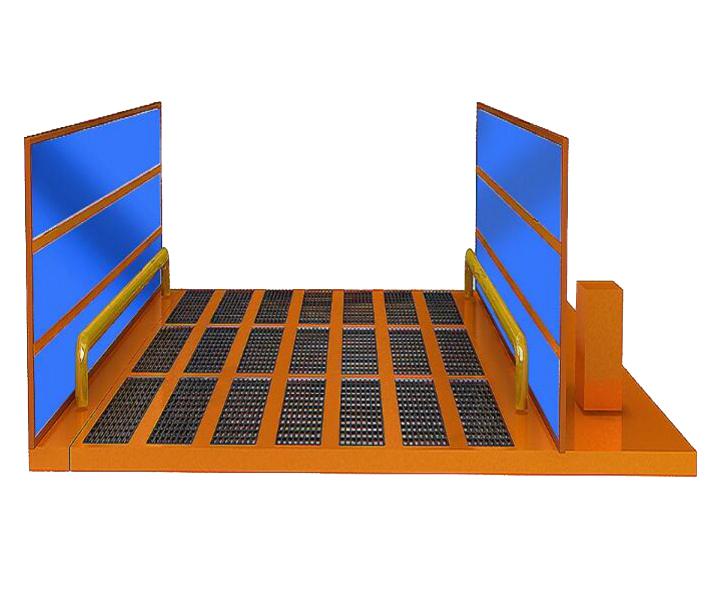

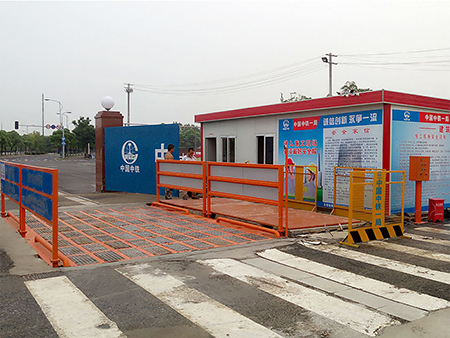

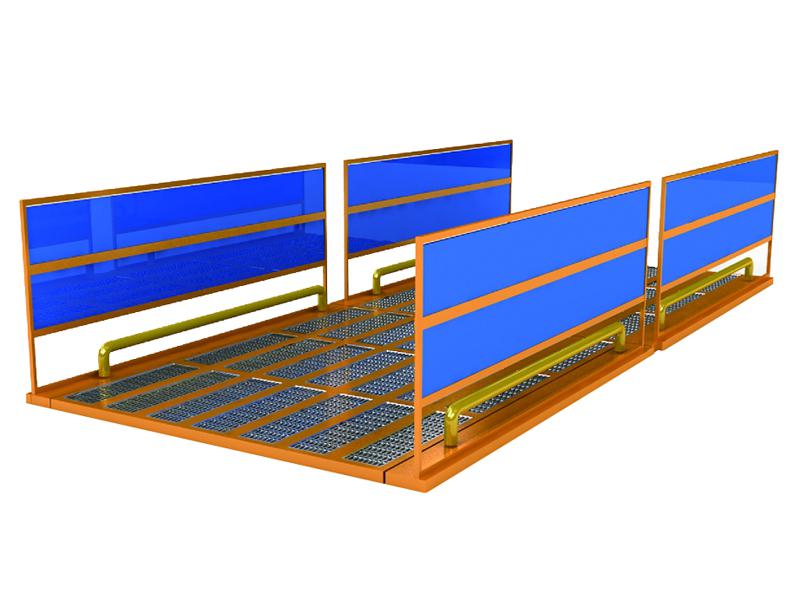

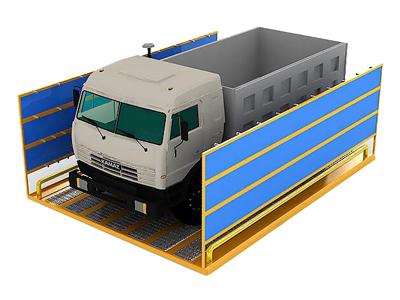

Worksite Heavy Duty Wheel Wash Systems (80 Tons) (130 Tons)

The worksite heavy equipment wash system rinses tires and undercarriages of heavy equipment, thus avoiding pollution of urban roads. This truck wash system completely cleans vehicle wheels and undercarriages in multiple directions with the use of high pressure water in as little as 40 seconds for a single truck. This wash system is ideal for heavy equipment with a capacity under 130T.

Parameters
Dimension L*W*H: 6000mm×4000mm×1300mm (custom size available)
Applicable Vehicles Heavy duty trucks capacity < 130T
Washing Time 40-60 sec/car
Voltage AC three-phase four-wire system Voltage AC380V 50Hz
Total Power 12.5KW
Water Supply DN 100mm water flow rate≥2000L/min
Advantages
  • Specialize in washing heavy duty trucks in order to assist in preventing urban road pollution.
  • Automatically removes dirt.
  • A corrosion resistant frame is exceptionally durable.
  • The water recycling system saves water resources.
  • Adjust to different working conditions and environments.
Configurations
Photoelectric sensor Undercarriage wash system (optional) high pressure water jet system
Guide rail Drainage ditch Electric cabinet
Operation cabinet Water tank Cable and water pipe ditch
